Description
Ford 800 Gallon Pickup and Delivery Truck (In Production Now)
pickup and delivery truck configured for portable restroom transport and on-route service with an 800 gallon 3-compartment tank, Masport HD4V vacuum performance, DC-10 washdown, and a hauling setup designed to move and service up to 6 toilets at a time.

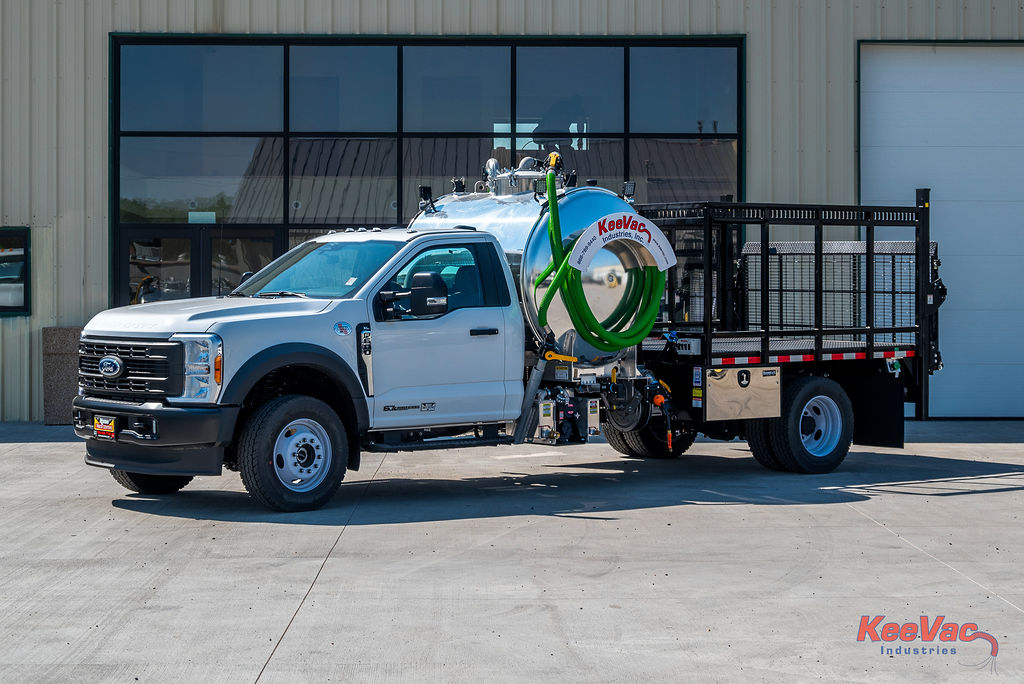

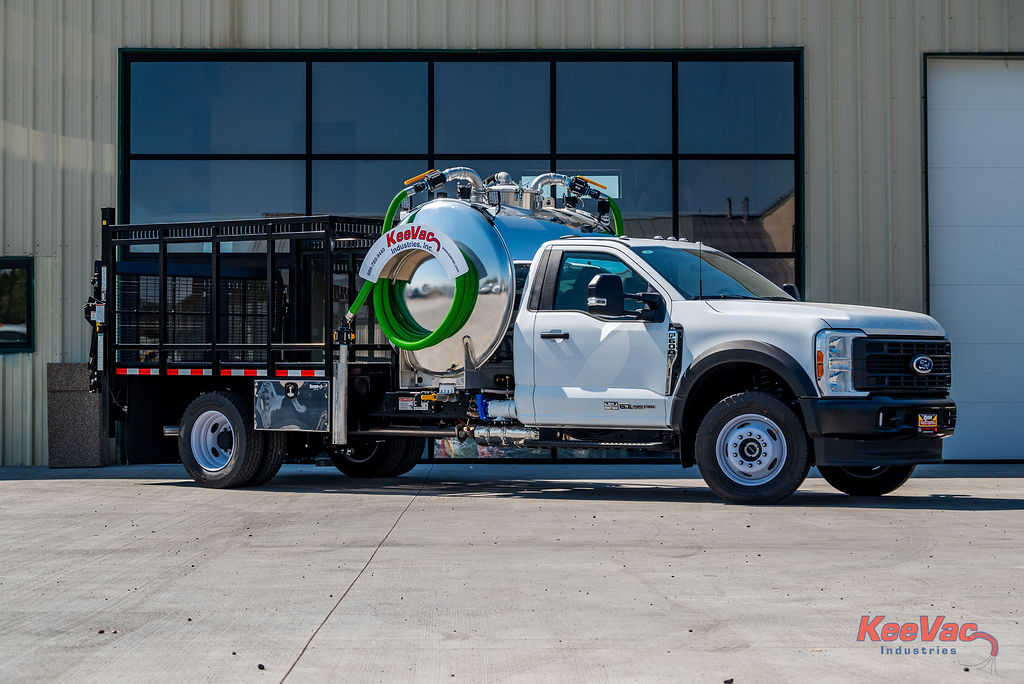

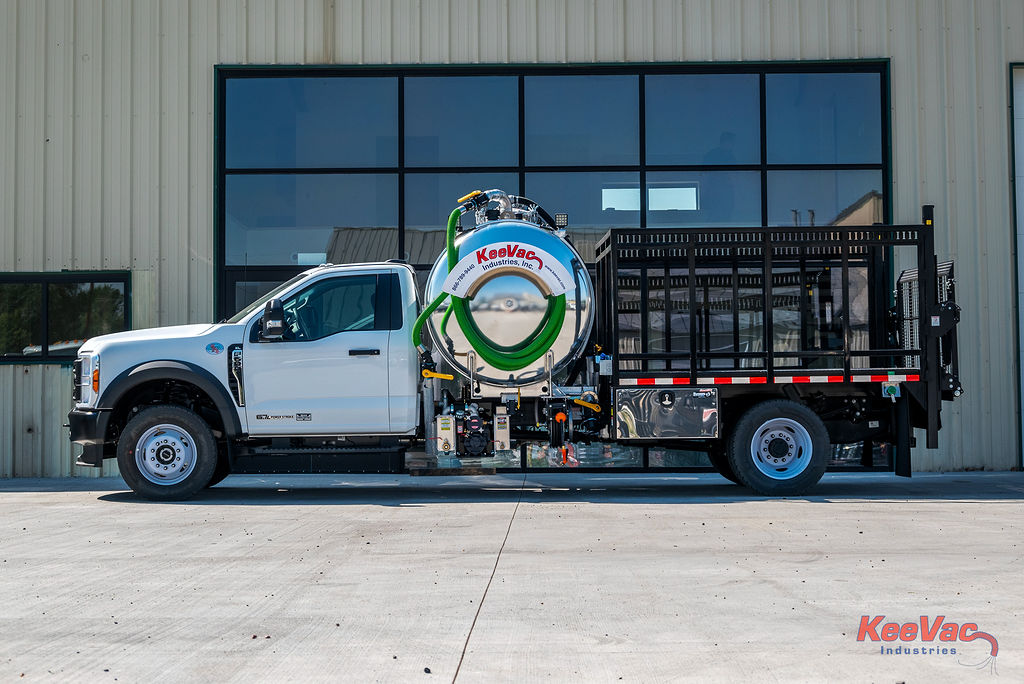

Photos show a like previously built unit. Contact us for photos of the actual units in production.
800 gal 3-compartment
Masport HD4V (165 CFM)
DC-10 washdown
Hauls up to 6 toilets
Truck Info
| Make | Ford |
| Model | F-550 |
| Year | 2024 |
| Fuel | Diesel |
| Drive | 4 x 2 |
Fitment note: Final payload and legal hauling capacity vary by chassis configuration and upfit options. Confirm requirements for your routes and compliance needs.
Tank and Equipment
| Tank size | 800 gallon, 3-compartment |
| Compartment split | 150 fresh / 500 waste / 150 fresh |
| Flatbed | 8’4" (4 toilet capacity) |
| Liftgate | Thieman (2 toilet capacity) |
| Vacuum pump | Masport HD4V (165 CFM) |
| Water pump | DC-10 washdown |
| Hose reel | Hannay hose reel with 50′ garden hose, mounted driver side near vacuum pump |
| Suction hose | (2) 2" x 30′ Gator Tail suction hoses with aluminum toilet wands |
| Dump | Driver side 3" dump |
| Toolboxes | (2) 36" stainless steel doored toolboxes |
Why This Pickup and Delivery Build Works on Real Routes
Designed to move and service up to 6 toilets
This setup pairs an 8’4" flatbed and Thieman liftgate to transport up to 6 portable restroom units, while the onboard vacuum and washdown systems support efficient cleaning and turnaround between stops.
Best fit for
- Events and seasonal surge routes
- High-frequency service schedules
- Operators who want fewer trips back to the yard
Balanced capacity and service speed
The 3-compartment tank split supports route efficiency, while the Masport HD4V vacuum performance and DC-10 washdown system help crews work faster with fewer interruptions.
Operational details that matter
- Dual-side design for smoother workflow and access
- Toolboxes and holders positioned for daily use
- Driver-side dump for practical disposal workflow
For upkeep and baseline checks, see Truck Maintenance and keep parts moving through Parts Department.
What to Confirm Before You Buy
Route requirements
- Average number of units moved per day and per event
- Dump access and disposal workflow on your routes
- Water availability and washdown needs
Fleet fit
- Chassis class alignment with your driver and licensing requirements
- Storage and yard logistics for loading and staging units
- How this complements your broader lineup of Portable Restroom Trucks and Pickup & Delivery Trucks
FAQ
How many portable restrooms can this truck transport?
This build is designed to transport and service up to 6 portable restroom units at a time, with 4 on the flatbed and up to 2 on the Thieman liftgate.
How is the 800 gallon tank configured?
The tank is a 3-compartment setup configured as 150 gallons fresh, 500 gallons waste, and 150 gallons fresh.
What pump setup is included?
The vacuum system uses a Masport HD4V (165 CFM) vacuum pressure pump, and the washdown water system uses a DC-10 pump connected to a Hannay hose reel with 50′ of garden hose.
Are the photos of the exact unit?
The photos shown are of a like previously built unit. Contact KeeVac for photos of the actual units in production now.
How do I reserve this build?
Reach out to the sales team to confirm build status, options, and lead time, then request pricing through Get a Quote or message through Contact.
Ready to Put This Truck on Your Route?
Talk with KeeVac Industries about availability, build details, and delivery options for this Ford F-550 pickup and delivery unit in production.
