Slide In Units

Available in two styles, Flanged and Dished and Soup Can, As well as 1 and 2 Compartment units.

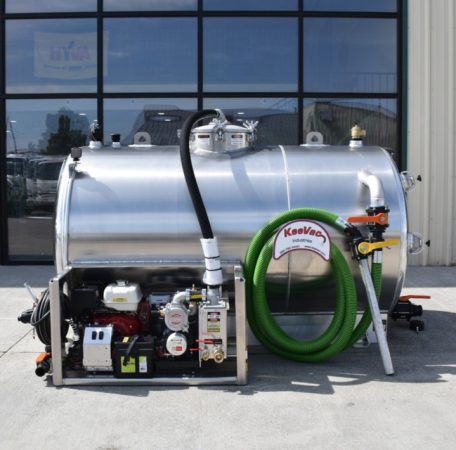

Soup Can Style
Slide Ins (3)

Soup Can Catalog

  • Tank within a tank design
  • Rear Engine Configuration
  • Standard Sizes of 300, 450, 600, 800, 995
  • 2 Compartment Splits of 300 (200 Waste / 100 Fresh), 400 (300 Waste / 150 Fresh), 600 (400 Waste / 200 Fresh), 800 (540 Waste / 260 Fresh), 995 (670 Waste / 325 Fresh),
  • 5454-H32 Marine grade mill finish aluminum
  • – 8″ X 2″ NVE low profile primary with stainless steel ball and cage
  • – 3″ Discharge with 3″ full port poly ball valve, male camlock and dust cap

Slide Ins (2)

  • – 3″ Top nipple with 2″ adapter for Tiger tail Suction hose
  • – (2) 2″ Sight eyes in waste compartment, half-moon style hose hook suction hose
  • – Hose hook for wash down hose (2 compartment units only)
  • -(1) Work light, full length fork lift pockets
  • -12v wash down pump (2 compartment units only)
  • – 2” plastic secondary
  • – 2″ oil trap
  • – 2″ Bucket fill with 2″ straight male camlock fitting
  • – 2″ x 30′ Tigertail suction hose with 2″ valve and 30″ schedule 80 PVC wand
  • – ½” x 50′ wash down hose with spray nozzle, Customer to supply 12v battery

Slide Ins (1)

Flanged And Dished Style
Flanged And Dished Catalog

    • Flanged and Dished Head’s for structural Stability under vacuum.
    • Rear and Side Engine Configurations Available
    • Standard Sizes of 435, 600, 800, 950, 1200, and 1500 Gallon
    • 2 Compartment Splits of 435 (300 Waste / 135 Fresh), 600 (400 Waste / 200 Fresh), 800 (550 Waste / 250 Fresh), 950 (650 Waste / 300 Fresh), 1200 (900 Waste / 300 Fresh), 1500 (1100 Waste / 400 Fresh)
    • – 5454-H32 Marine grade mill finish aluminum
    • – 20″ X 2″ NVE low profile primary Shutoff
    • – 3″ Discharge with 3″ full port poly ball valve, male camlock and dust cap

Slide Ins (1)

  • – 3″ Top nipple with 2″ adapter for Tigertail Suction hose
  • – (2) 5″ Sight eyes in waste compartment,
  • – Hose hook suction hose
  • – Hose hook for wash down hose (2 compartment units only)
  • – (1) Work light, full length forklift pockets
  • – 12v wash down pump (2 compartment units only)
  • – 2″ plastic secondary
  • – 2″ oil trap
  • – 2″ Bucket fill with 2″ straight male camlock fitting
  • – 2″ x 30′ Tigertail suction hose with 2″ valve and 30″ schedule 80 PVC wand
  • – ½” x 50′ wash down hose with spray nozzle ((2 compartment units only)
  • – Customer to supply 12v battery
